HYDRAULIC PROPORTIONAL TRACTOR BRAKE VALVE - MECHANICAL
Article code:
100504
OEM:
9990000065479
Tax rate
22 %
Price without VAT:
438,52 EUR
Price with VAT:
535,00 EUR
Ref:
63
Description:

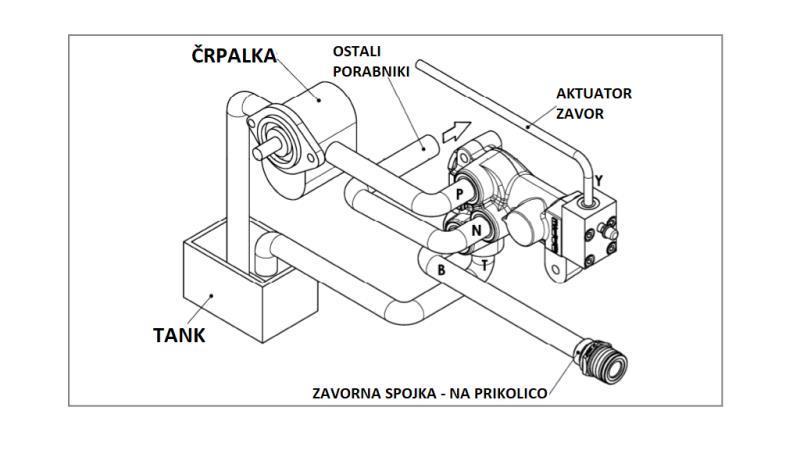

The hydraulic proportional tractor brake valve is a component through which we can synchronously brake a trailer with a tractor. The valve is installed on the tractor, which connects to the hydraulics and directional valves and the existing braking system. The brake valve is controlled directly via the tractor's braking pressure. The trailer brake valve with mechanical control is activated by a connecting rod or cable from the brake pedal.
Note: When using the valve, it is necessary to install a metal plate, which is installed on the valve in a prepared slot. The metal plate IS NOT included.
Supplier:
Italy
Temperature range:
-20 / 100 °C
Return or exchange:
14 days
connection thread:
"P","N","Rim","T" M18x1,5
Product weight:
2.75 kg
Warranty:
6 months
max. pressure:
"Rim" = 130 - 150 bar
Flow:
20 - 100 l/min
