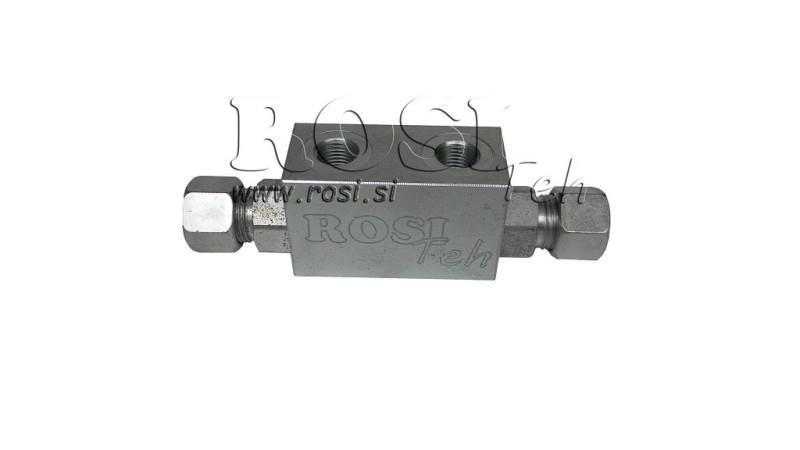

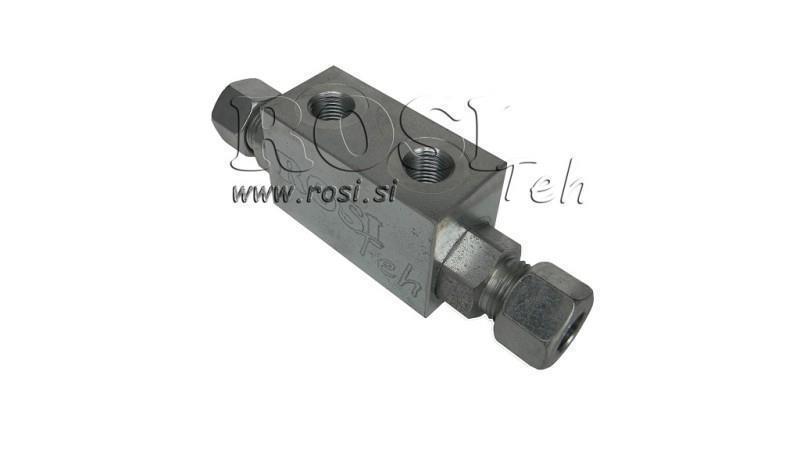

BLOCK VALVE VBPDE 3/8 - 35lit
Article code:
10425
OEM:
9990000003518
Tax rate
22 %
Price without VAT:
12,30 €
Price with VAT:
15,00 €
Ref:
161
Use:
Block valves are used to lock the cylinder in both directions of operation. The flow is first released in one direction and blocked in the other direction until the control pressure is applied in the other direction. The reverse function also works in the other direction. Block valves are easy to mount on existing hydraulic cylinders.
Material:
Iron - galvanized
Inside the valve made of carbide parts
Seals BUNA N standard
Connections:

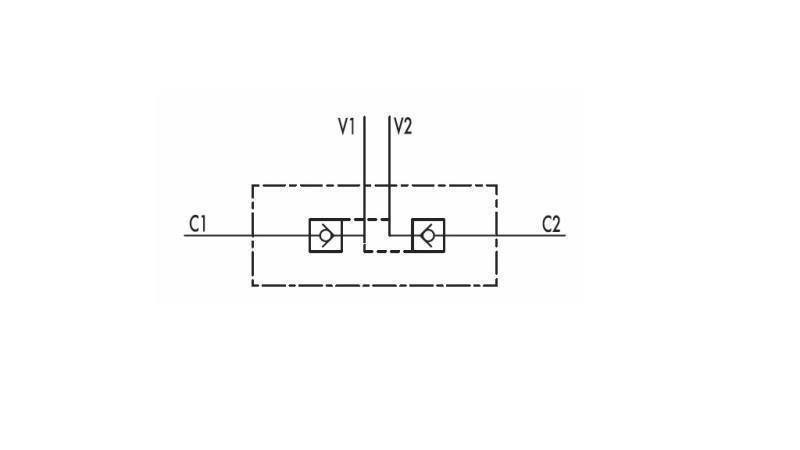

Connect the hydraulic pressure line to V1 and V2. Connect C1 and C2 to the actuator (hydraulic cylinder).
supplier:
Italia
product weight:
0,628 kg
max. flow:
35 lit/min
maximum pressure:
350 bar
return or exchange:
14 days
protection:
zinc
warranty:
6 months
